Multi- function Germany motor double station Pressed Rawhide Bones
Detailed product description

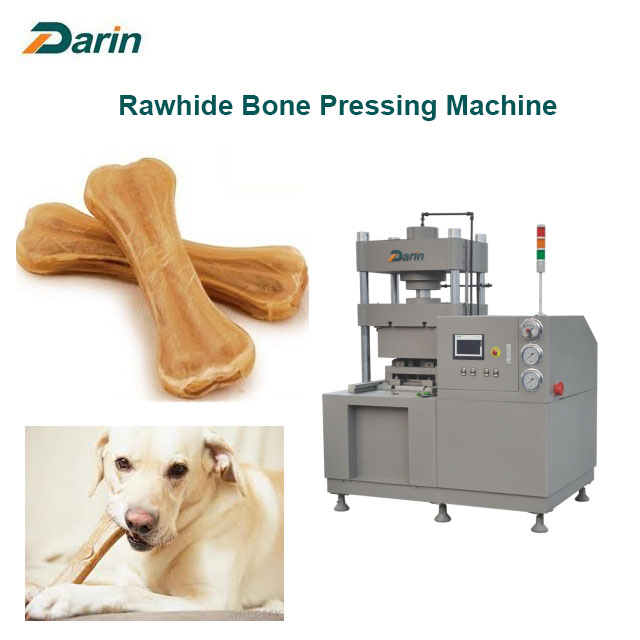

Rawhide pet bone pressing machine could produce pet chewing bone with cowhide, pigskin, beef tendons or sh-eepskin as material. It could press the material to be various shapes and sizes.
Introduction & Features:
| Number | Advantage |
| 1 | It is type of Flour Column and Three Board, the upmost output tonnage can be adjustable. |
| 2 | It can be adjusted among the range of 5t-60t according to the different products’ procedures, the purpose is to arrive the best required output. |
| 3 | Well, our DR-60T Pressing Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective. |
| 4 | In addition, our DR-60T Pressing Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat |
| 5 | After pressing, the mold plate can be moved outside, so that it could well protect the operator’s safety |
| 6 | Machine with good safety design. While the workers place the materials or take out the final product, the bottom mold can be moved outward, so the workers is not under the upper mold. Only after the worker leave the machine, the machine should be allowed to start by pressing the two palm buttons. |
| 7 | quipped with PLC and touch screen to realize easy control. Different languages can be input as requirement (standard language is Chinese and English). |
Why Choose Us?
| Number | Description |
| 1 | Germany motor, three years worldwide guarantee |
| 2 | Double-station, double molds, it can improve the efficiency |
| 3 | Touch screen with Schneider electric parts |
| 4 | Wide range of application, the material can be used cow hide,Sheepskin, pig skin,Fish skin. |
| 5 | You can adjust the size of your products, it is easy to change the molds |
| 6 | Simple operation with good safety protection |
Raw materials:
cow hide,Sheepskin, pig skin,Fish skin.
Technical parameter
| Model | DR-60T |
| Theory Output | Max 60t |
| Working Surface Size | Left and Right 500mm |
| Working Surface Size | Front and Back 400mm |
| Height of Working Table to the Ground | 780mm |
| Max. Stroke of Mobile Mould | 350mm |
| Motor Power | 9KW |
| Weight | 1800KG |
| Dimension | 2500 x 1200 x 1900mm |
Commissioning Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are on client’s account.
